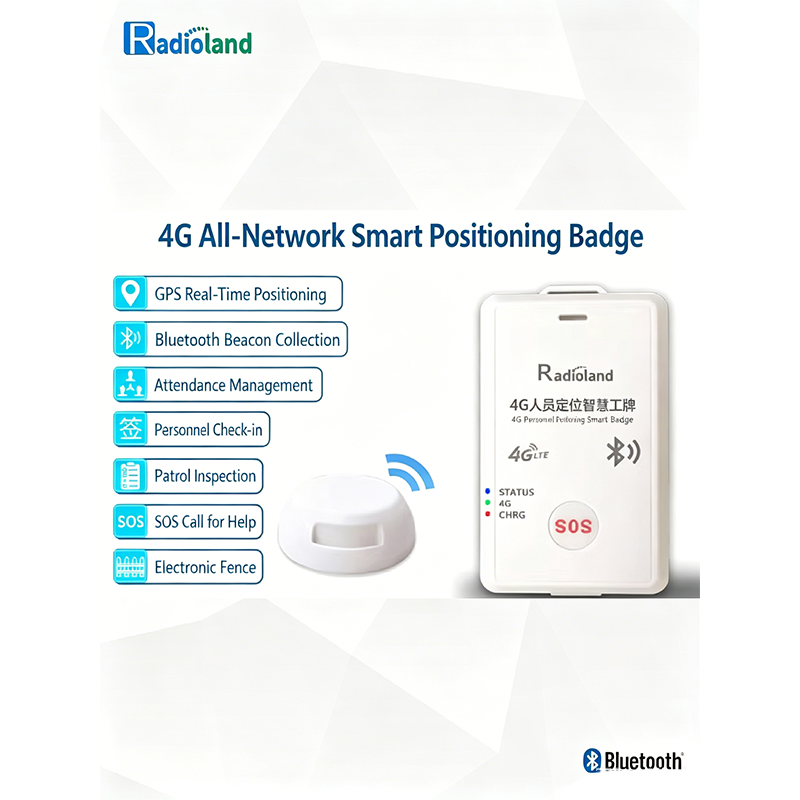

The C10 4G Full-Netcom Smart Employee Badge is an intelligent office management tool tailored for outdoor workers, ideal for managing scattered field staff.
Once worn by employees, it supports smart attendance checking, personnel positioning, patrol inspection, one-touch remote SOS emergency call and other functions,
enabling efficient staff management.

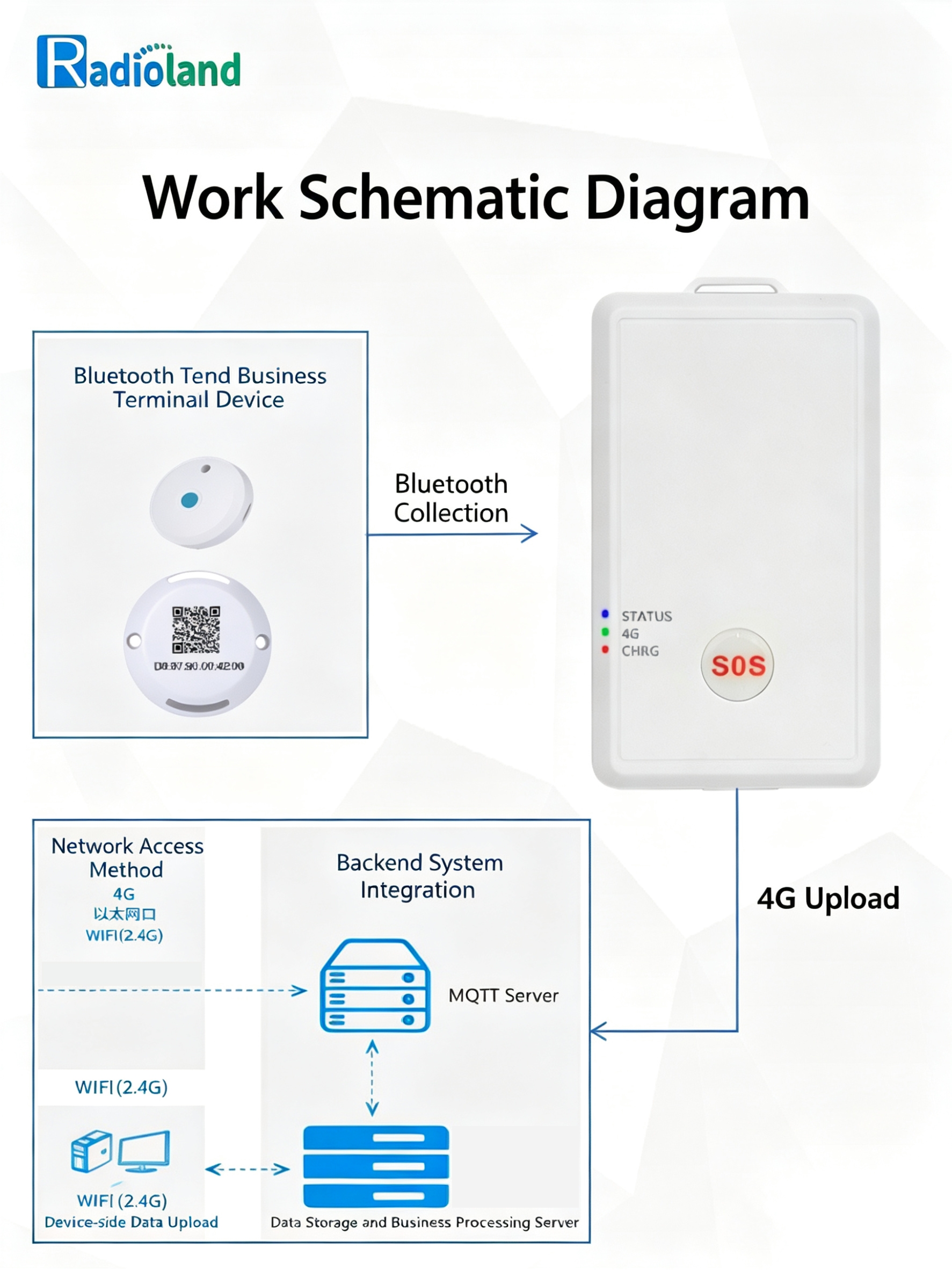

This badge adopts TCP/UDP/MQTT protocols for data transmission and allows customized data upload intervals.

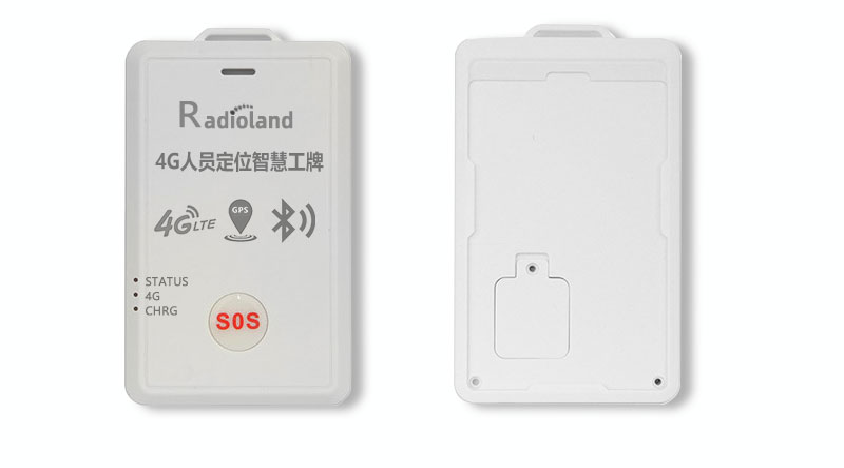

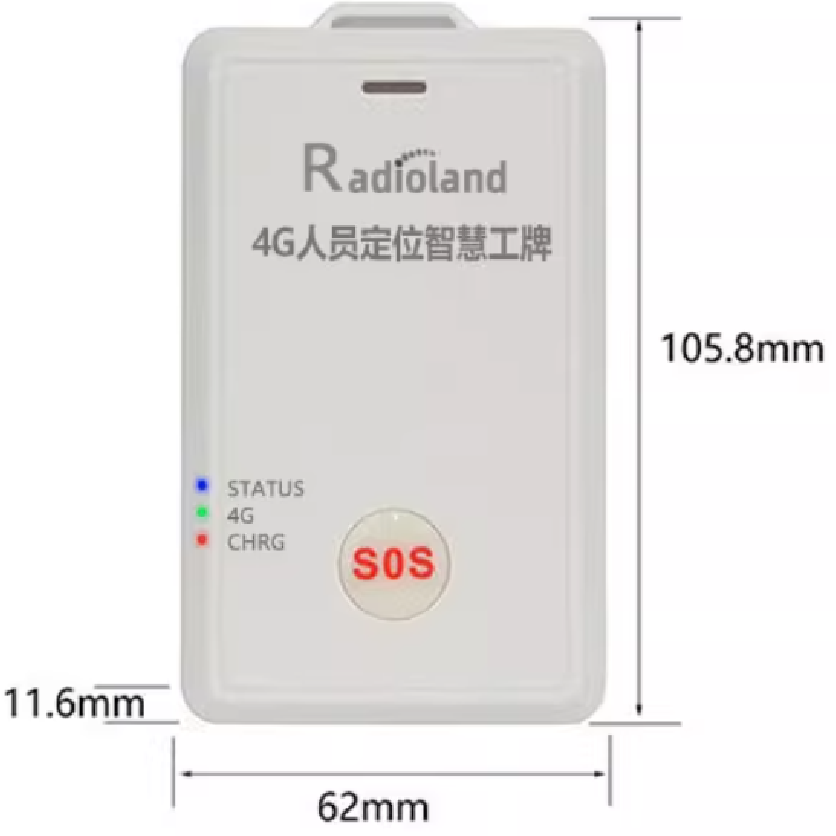

Product Dimensions
| *Real-time GPS Location* *BLE Beacon Scanning* *Attendance Management* *Staff Check-in* *Patrol & Inspection* *SOS Emergency Call* *Geofencing* |
| No. | Item | Parameter |
|---|---|---|
| 1 | Network | 4G LTE FDD / LTE TDD CAT-1 |
| 2 | Positioning Mode | WIFI + GPS + Beidou + LBS Base Station + BLE Beacon |
| 3 | Network Protocol | TCP / UDP / MQTT |
| 4 | Upload Data Format | JSON |
| 5 | Power Supply Voltage | 3.4-4.2V DC / 5V Power Supply |
| 6 | Operating Temperature | -20℃ ~ 60℃ |
| 7 | SIM Card | 4G Full Netcom NANO SIM Card |
| 8 | 4G/GPS/BLE/WiFi Antenna | Built-in |
| 9 | Frequency Band | LTE-FDD B1/ 3/ 5/ 8LTE-TDD B34/ 38/ 39/ 40/ 41 |
| 10 | LTE-FDD Data Transmission Rate (Mbps) | 10 (Downlink) / 5 (Uplink) |
| 11 | LTE-TDD Data Transmission Rate (Mbps) | 8.96 (Downlink) / 3.1 (Uplink) |
| 12 | GNSS | GPS / GLONASS / BDS |
| 13 | Positioning Accuracy | 5-10m (under unobstructed GNSS signal conditions) |
| 14 | GPS Channels | 64 |
| 15 | GPS Sensitivity | -162 dBm |
| 16 | Dimensions | 105.8 (L) × 62 (W) × 11.6 (H) mm |
| 17 | Built-in Battery | Lithium Battery (1500mAh) |
| 18 | Standby Time | 10-12 days |
| 19 | Charging Current | 1500mA, fully charged in approx. 4-5 hours |
| 20 | Operating Current | ≤ 150mA |
| 21 | Standby Current | ≤ 1mA |
| 22 | Charger Requirements | DC5V 1A or above |

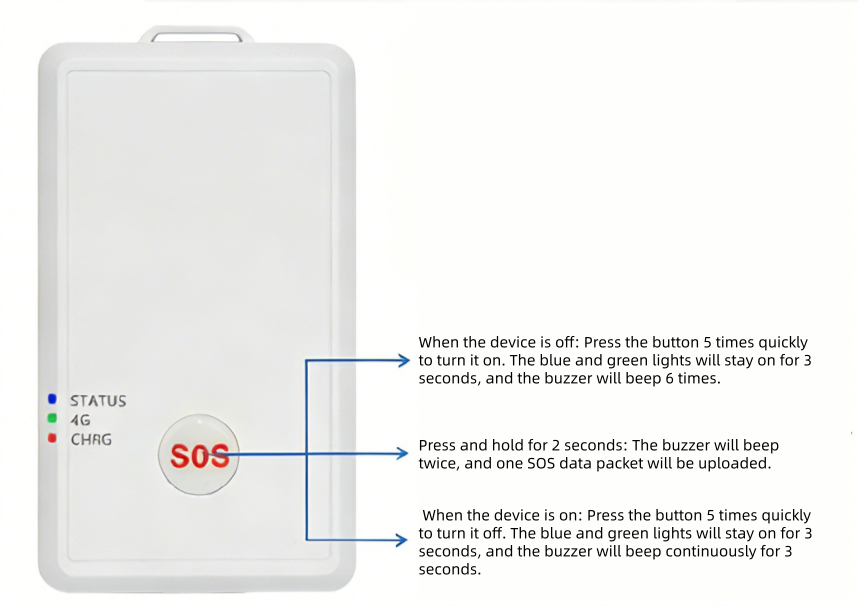

Button & Indicator Light Instructions
| Button Operation | Function | Function Description |
|---|---|---|
| Press and hold for 2 seconds | SOS Call | The buzzer beeps twice, and one SOS data packet is uploaded. |
| Press quickly 5 times | Power On/Off | When off: Press 5 times quickly to turn on, buzzer beeps 6 times.When on: Press 5 times quickly to turn off, buzzer beeps continuously for 3 seconds. |
| Indicator | Working Status | Effect |
|---|---|---|
| CHRG Power Indicator (Red) | Charging | Red light stays on |
| Fully Charged | Red light turns off | |
| Positioning Indicator (Green) | GNSS Positioning Successful | Flash quickly 3 times |
| Beacon Positioning Successful | Flash quickly 2 times | |
| Power On/Off | Green light stays on for 3 seconds | |
| Working Indicator (Blue) | Working | Flash once every 2 seconds |
| Power On/Off | Green light stays on for 3 seconds | |
| Buzzer | Low Battery | Beep once every 5 minutes |
| Power On/Off | Beeps 6 times on power-on; long beep for 3 seconds on power-off |
